Equal Earth positioning and slice speculations v01

Development records · Stage 16 ledger · Equal Earth implementation

These five 2560 × 1440 PNGs implement the Stage 16J one-to-five comparison queue. They are local research previews. Equal Earth remains outside the six standard release projections, and none of these files enters make all, a GitHub release, or UCB AAO/S3.

Iteration Projection and slice Recommended use Required caution
1 Web Mercator at its explicit ±85.0511288° limit beside canonical Greenwich Equal Earth, both full world Establish the familiar control before discussing area and positioning Mercator omits the polar caps; do not let familiarity become an unstated quality criterion.
2 Canonical Equal Earth and the same method centered on 11.5°E, both full world with identical indicatrices Isolate centering as the named layout variable and inspect area-preserving shape deformation The centered variant is not EPSG:8857. Tissot diagnostics test mathematics, not audience response.
3 One WGS 84 source window, 25°W–60°E, 40°S–75°N, through Mercator, canonical Equal Earth, and centered Equal Earth Compare an Africa–Europe regional discussion without changing the source selection Each panel is fit to its projected extent. It is a source slice, not a newly registered regional CRS.
4 Canonical Equal Earth, AuthaGraph, Dymaxion, and Myriahedral Afro–Eur–Asia as full carriers Compare uninterrupted area, rectangular continuity, Fuller interruption, and registered regional topology Cuts and carrier geometry change together; this is not a single-variable perceptual study.
5 Equal Earth full, centered Equal Earth geographic preclip, Myriahedral Afro–Eur–Asia registered perspective, and CK ck-octant-3 native-cell mask Choose a slice grammar by purpose: planetary, regional source window, interpretive registered perspective, or repeatable native cell Every sliced delivery needs a full-carrier locator plus seam, cell, source-window, and inverse-behavior metadata.

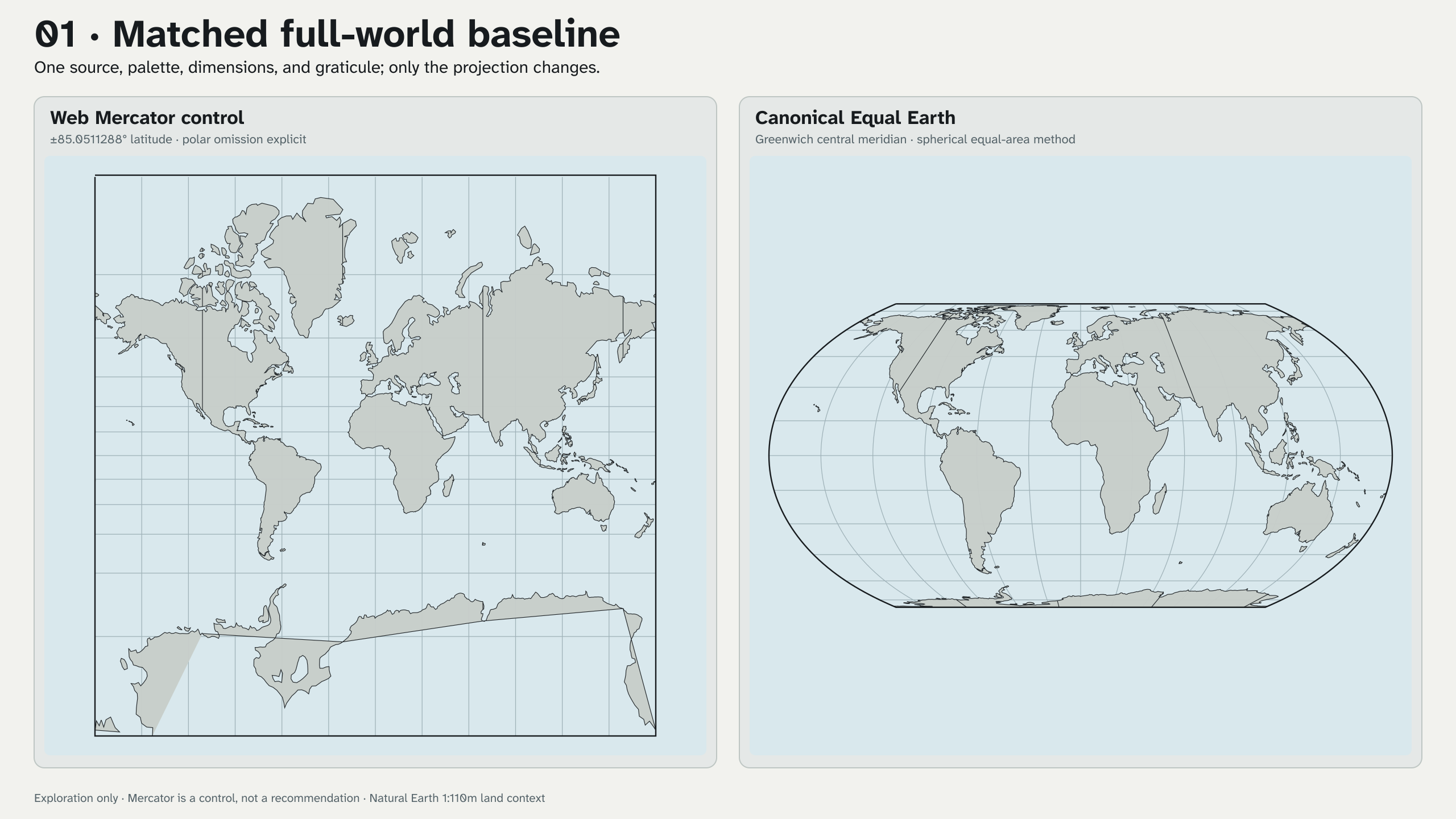

01 · Matched full-world baseline

Web Mercator and canonical Equal Earth rendered with a shared source, palette, dimensions, and graticule

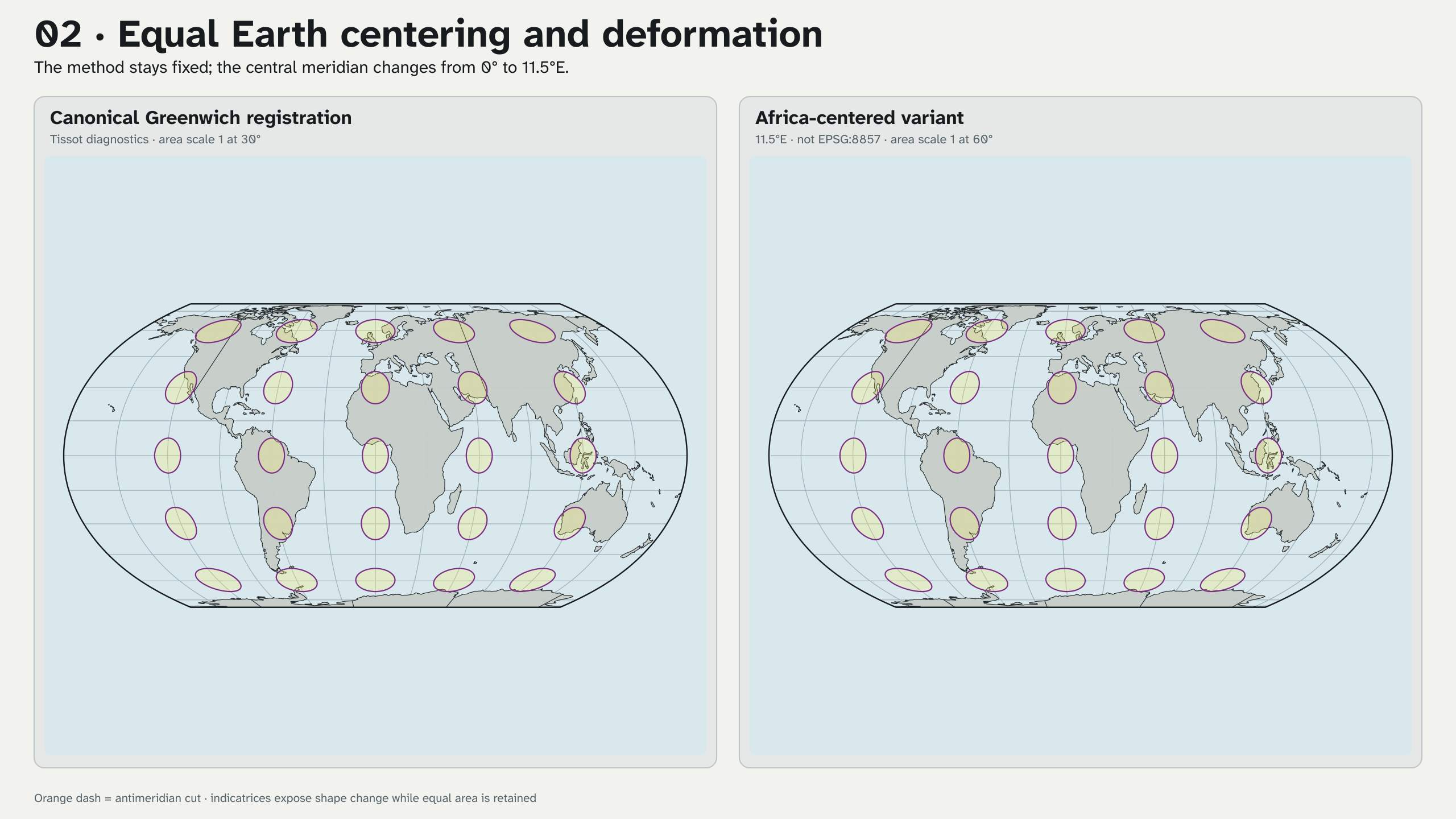

02 · Centering and Tissot diagnostics

Canonical and Africa-centered Equal Earth with matching indicatrices

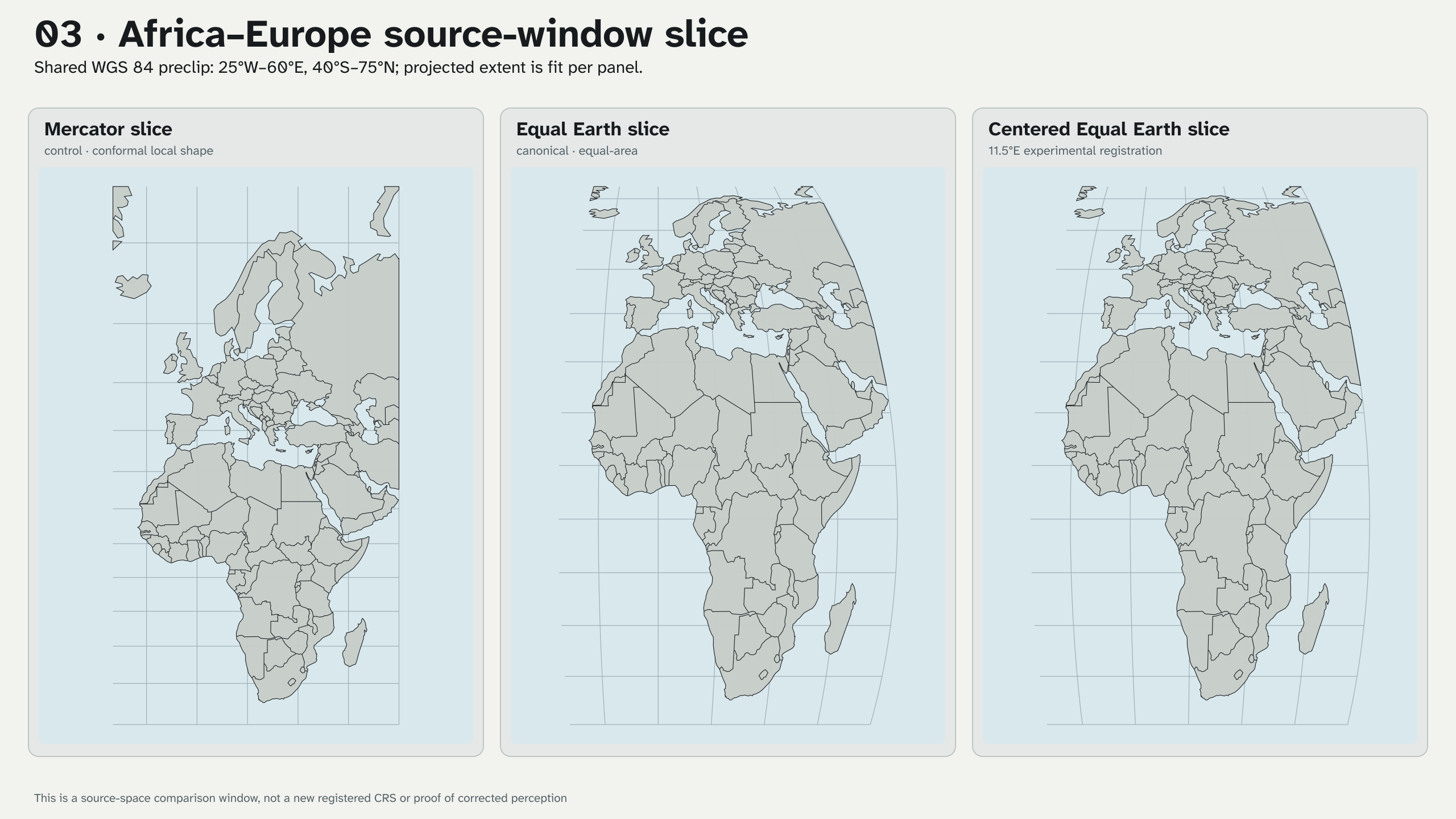

03 · Africa–Europe source-window slice

The same Africa-Europe WGS 84 source preclip rendered through three projection registrations

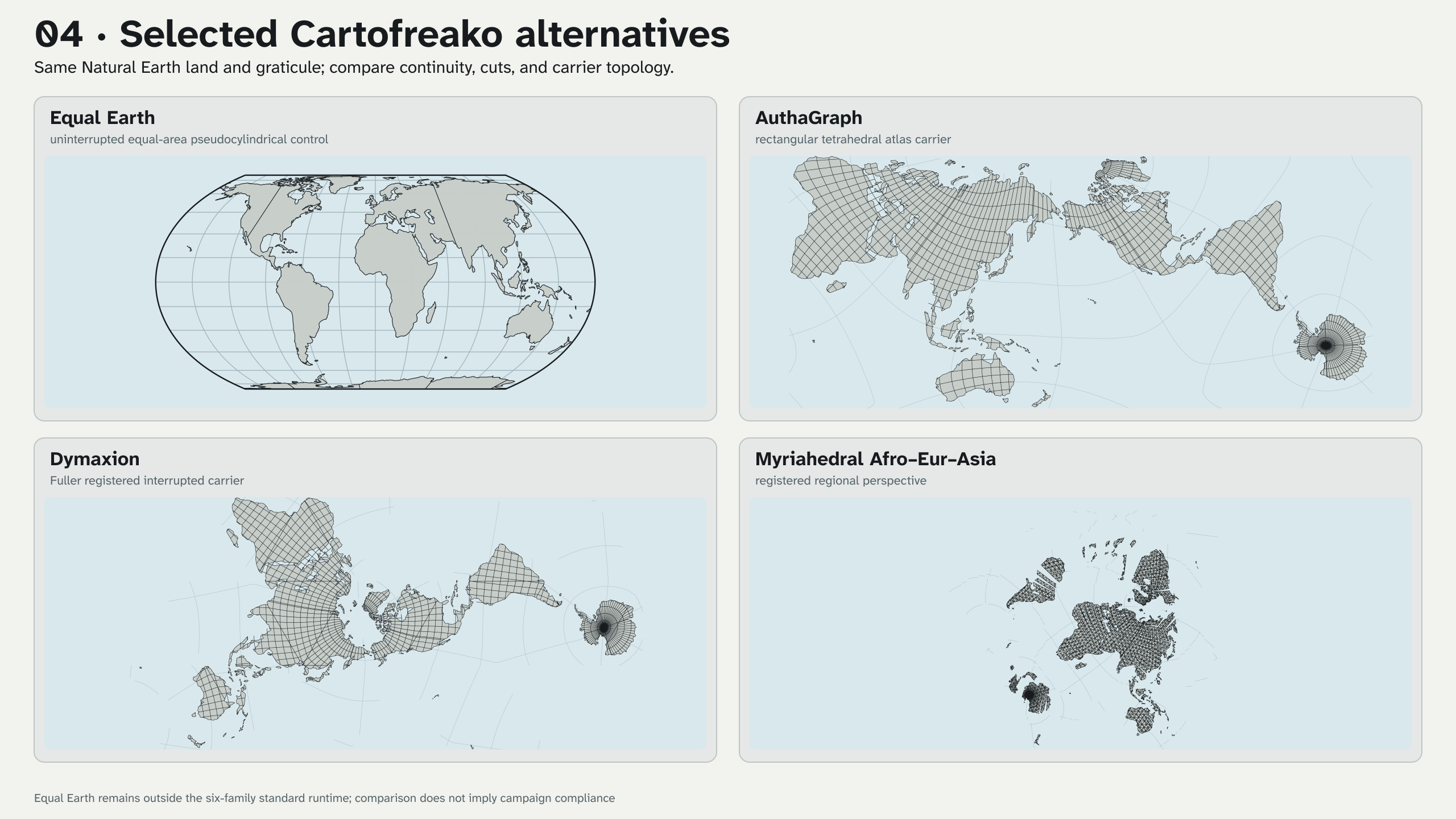

04 · Full-carrier alternatives

Equal Earth beside AuthaGraph, Dymaxion, and Myriahedral Afro-Eur-Asia

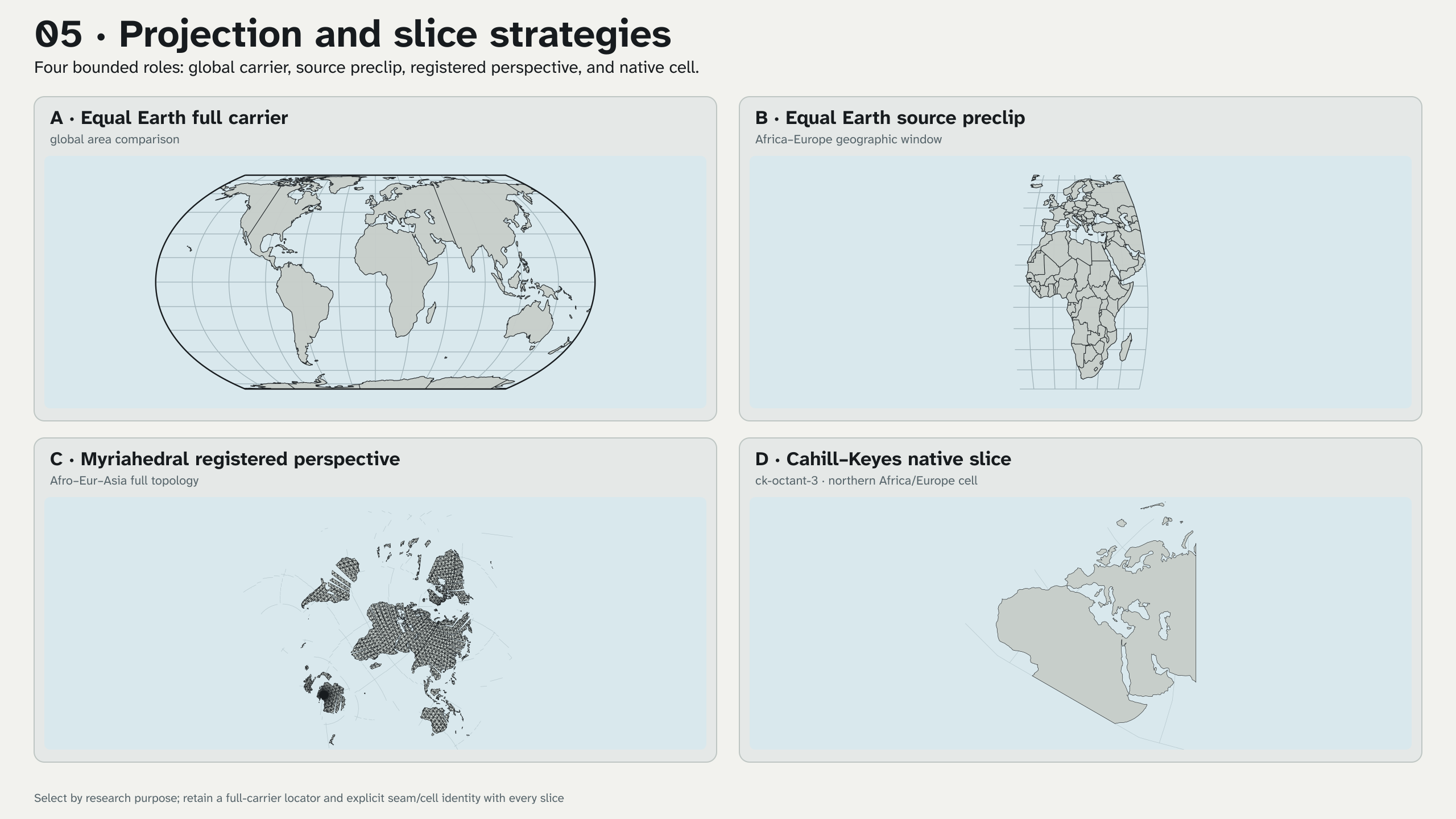

05 · Projection and slice strategies

Full, geographic-preclip, registered-perspective, and native-cell slice roles

Numerical and evidence controls

The implementation-neutral bundle under fixtures/projections/equal-earth-v1/ contains 30 cases across canonical and 11.5°E layouts. PROJ and D3 are recorded as cross-implementation oracles. C++ and JavaScript consume the same neutral raw/page contract, and the offline checker adds forward/reverse, outside-carrier, seam, pole, Jacobian, local-scale, angular-deformation, Tissot, and spherical area-scale diagnostics.

The Mercator plate is a control only. The Equal Earth plates demonstrate an implemented equal-area method and explicit centering alternatives; they do not establish compliance with #CorrectTheMap, correction of human bias, a decolonial outcome, or a preferred projection for every task. Those require campaign criteria and participatory human evaluation beyond Stage 16J.

Reproduce headlessly

make check-equal-earth-projection
make render-equal-earth-positioning-v01

The renderer uses checked local 1:110m geometry, the dedicated Equal Earth module, the six-family WebAssembly runtime for comparison carriers, GDAL for the regional source preclip, Inkscape for rasterization, and ImageMagick for stable PNG metadata. It performs no network access, acquisition, authorization, email, release, upload, or external transfer.

make all-experiments includes this renderer because its five products are implemented and non-release. Promotion remains a separate human decision.
