Stage 15 R1 — Majuro atoll-scale evidence canary and full pass

Status: implemented and checked exploration-only canary plus six-projection full pass; no promotion, release, or external publication authorized

Checked: 2026-08-10

Stage 15 ledger · source-data instructions · evidence manifest · coordinate fixture · full-pass manifest

Outcome

A first atoll-scale evidence tier is technically viable. The approved canary combines one public USGS observation-derived topobathymetric surface, one separately labeled USGS inundation scenario, and a planetary Myriahedral Pacific carrier. It preserves source dates, spatial resolution, datum, uncertainty, preparation history, and forward/reverse coordinate traceability rather than treating a high-resolution raster as self-authenticating evidence. Its approved visual grammar is now implemented for Cahill–Keyes, AuthaGraph, Dymaxion, Myriahedral Pacific, Star-X, and Voronoi.

The full pass contains 24 products: layered SVG, authoritative print PDF, 3840-pixel-long-side PNG, and 480-pixel thumbnail for each projection. The planetary carrier changes with the projection, while the analytical topobathymetry and inundation panels retain their source grid and claim boundary.

Both results remain exploration-only. They are not a standard or optional pass, is absent from default generation and release graphs, and is unsuitable for navigation, engineering, present-condition shoreline claims, or unreviewed public interpretation. Marshall Islands community and regional review has not been established.

Implemented evidence

The TBDEM release reports land RMSE 0.197 m, Landsat-8-derived bathymetry RMSE 1.066 m, and WorldView-3-derived bathymetry RMSE 1.112 m. The canary retains that source-specific distinction and does not assign one value to every cell. The inundation release reports cumulative vertical RMSE 0.192 m; the chosen 30-inch increment supports its documented 95% confidence threshold, and the probability layer represents 750 Monte Carlo DEM realizations.

Both USGS packages are public-domain U.S. government data. Their exact local archive sizes and digests are frozen in the manifest. NOAA Coral Reef Watch was assessed as a candidate but no NOAA raster was downloaded or rendered; its product version, redistribution terms, scale, and observation/forecast distinction still require review.

Storage and preparation

The original packages live beneath ignored assets.static/atoll-evidence/.raw/:

Git tracks only the three compact derivatives and their SHA256SUMS. Average resampling produces the approximate 10 m TBDEM and probability grids; nearest neighbor preserves the producer-defined deterministic zero/one class. CRS, affine transforms, data types, and NoData values are retained. The source 1 m rasters remain authoritative and local-only.

The small checked 700 × 394 planetary inset is a deterministic derivative of the Stage 14 Myriahedral Pacific water raster. It is explicitly not the analytical grid. Freezing it removes any generated-tree or Natural Earth fetch dependency from the canary’s offline render.

The frozen preparation toolchain is GDAL 3.11.5 for GeoTIFF resampling and ImageMagick 7.1.2-27 for the context derivative and final composition. A different tool version must reproduce the checked digests or be reviewed as a new derivative set.

The workflow is deliberately non-transitive:

make fetch-atoll-evidence-data       # network; ignored raw packages
make prepare-atoll-evidence-data     # requires raw; writes compact derivatives
make generate-atoll-evidence-canary  # offline; never fetches
make check-atoll-evidence-canary     # offline reproducibility and API checks

Coordinate and reverse trace

The checked coordinate fixture records five WGS84 source-envelope anchors and one prepared-raster pixel trace. Each point stores:

• its source or GDAL-transformed geographic coordinate;
• the forward myriahedral-pacific pixel, native cell, and component in a 3840 × 2160 frame;
• a reverse call qualified by that native cell and component; and
• the unique candidate and forward residual.

All six qualified round trips reproduce longitude and latitude within 2e-8 degrees. The central source anchor resolves to native cell 1738, component 0. The qualifier is evidence: an unqualified reverse at a cut or overlap must retain every valid candidate rather than guessing one source location.

Render identity and visual review

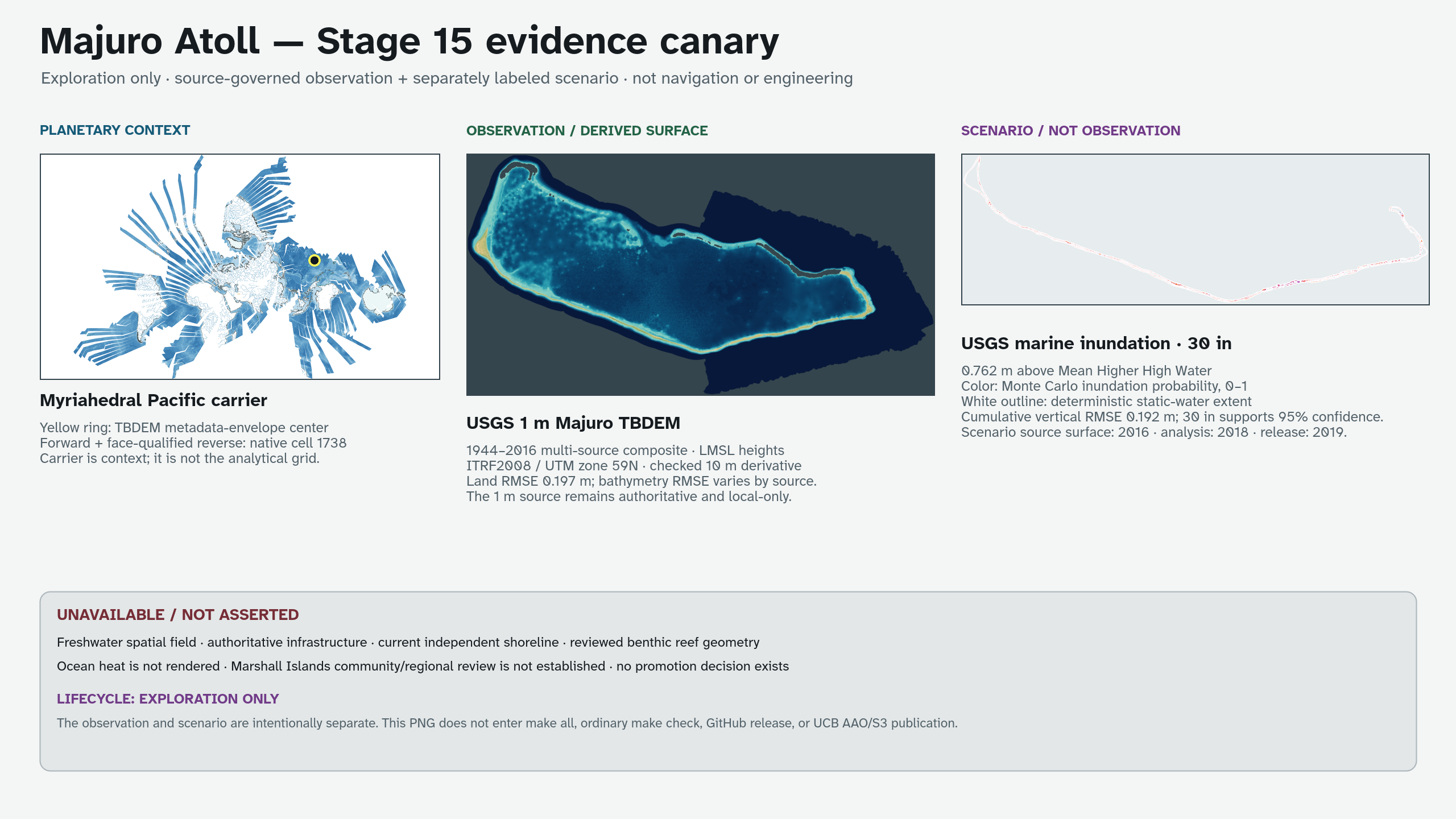

The output is an opaque 8-bit sRGB 2560 × 1440 PNG:

output/atoll-evidence-canary-v01/majuro-atoll-evidence-canary.png
SHA-256 d132b7fe925fde96acdefce772b93653e30877cb8e52692b04e779bf1925f49e

Visual inspection confirmed that the planetary locator, topobathymetric surface, scenario field, dates, uncertainties, and lifecycle boundary are legible. The deterministic scenario uses an outline instead of an opaque fill so it cannot erase the Monte Carlo probability field. The plate explicitly marks all unsupported categories as unavailable or not asserted.

Unavailable evidence and stop conditions

The canary does not render a freshwater spatial field, authoritative infrastructure, a current shoreline independent of the multi-date TBDEM, reviewed benthic reef geometry, or ocean heat. It also lacks Marshall Islands community and regional review. Missing evidence is UNAVAILABLE, never zero, transparent certainty, or implied absence.

No future iteration may:

• label a scenario as an observation;
• borrow the TBDEM’s 1 m resolution for another layer;
• discard valid reverse candidates at a projection cut or overlap;
• trace an unlicensed source graphic into geometry;
• infer a current, legal, or observed shoreline from this composite alone; or
• enter standard generation, GitHub release, or UCB AAO/S3 publication without a separate reviewed promotion decision.

Verification surface

make check-atoll-evidence-canary deterministically rebuilds the PNG and checks both JSON schemas, all compact-file and output hashes, raster dimensions, the ignored/untracked raw-package boundary, evidence statuses, and the six live WebAssembly forward/reverse traces. make check-stage-15-research-prototypes and make check-stage-15-active include that isolated check. None is part of ordinary make check or a release target.

make check-majuro-atoll-evidence independently validates the full-pass schema and manifest, six context carriers, 24 product paths, layered SVG evidence groups, print/full/thumbnail dimensions, hashes, claim boundaries, and the same qualified coordinate behavior. It may regenerate only local exploration products; it never fetches, promotes, releases, or uploads them.
