Source layout conventions

Documentation index · Build and generated artifacts · Visual gallery

Repository layout

Directory	Responsibility	Start here
`src.projections/`	Projection interface, frame abstraction, and native implementations	`a60-carto-projection.h`
`src.generate/`	Native SVG generators and their shared generation support	Generation guide
`src.wasm/`	All-projection browser runtime, workers, SVG/Canvas/D3 adapters, compatibility modules, examples, and smoke tests	WebAssembly quick start
`tests/`	Standalone algorithm and public-API tests	`make check`
`assets.static/`	Source plates, historical implementations, reference rasters, and downloaded geographic data	Myriahedral reconstruction assets
`assets.generated/`	Projection-organized SVG (`.svg.gz` release companions), PDF, full PNG, and thumbnail deliverables	Visual gallery, v14 AAO release record, and projection snapshot catalog

This separation keeps reproducible inputs distinct from rendered outputs and keeps generation programs out of the test suite.

Most projection-specific headers use the cart0freak0-*.h basename. The Dymaxion header uses its requested a60-carto-projection-dymaxion.h name. The shared Alpha60-compatible interface and frame headers retain their established a60-carto-*.h names. Paths from the earlier src/, generated/, web/, and assets/ layout are no longer canonical.

Source guide

File	Role
`src.projections/cart0freak0-authagraph.h`	AuthaGraph analytic forward transform, frame validation, API, and A3 preset
`tests/test-authagraph-projection-api.cc`	AuthaGraph formula, source-plate, variable-frame, domain, and API tests
`src.projections/cart0freak0-cahill-keyes.h`	Native scalable forward construction, `projection_api`, frame validation, and named presets
`src.projections/cart0freak0-cahill-keyes-functions.h`	Scale- and offset-aware Cahill-Keyes projected-path seam splitting
`src.projections/cart0freak0-cahill-keyes-slicing.h`	Whole-Earth carrier validation, arbitrary-ratio viewport descriptors, exact-octant clipping, SVG wrappers, and slice verification
`tests/test-cahill-keyes-projection.cc`	Cahill-Keyes mathematical reference, scaling, and domain tests
`tests/test-cahill-keyes-projection-api.cc`	Cahill-Keyes public API, frame, raster, and integration-anchor tests
`tests/test-cahill-keyes-path-functions.cc`	Cahill-Keyes path seam, scaling, offset, state, and validation tests
`tests/test-cahill-keyes-slicing.cc`	Four-strip and exact-octant geometry, metadata, SVG linkage, physical-size, and invalid-carrier tests
`src.projections/a60-carto-projection-dymaxion.h`	Exact Fuller face transform, 23-piece Airocean net, frame validation, public API, factory, and native-size preset
`tests/test-dymaxion-projection-api.cc`	Dymaxion edge scale, Gray reference coordinates, topology, variable-frame, domain, and API tests
`src.projections/cart0freak0-equal-earth.h`	Stage 16J standalone spherical Equal Earth forward/reverse equations and normalized page wrapper
`tests/test-equal-earth-projection.cc`	C++ consumption of the neutral canonical and Africa-centered Equal Earth fixtures
`tests/check-equal-earth-projection.mjs`	JavaScript oracle, round-trip, area-scale, local-scale, angular-deformation, and Tissot diagnostics
`src.projections/cart0freak0-projection-runtime.h`	All-model registry, layouts, frame validation, native-cell classification, and shared seam-safe paths
`src.projections/cart0freak0-projection-geometry.h`	Batched flat geometry protocol, adaptive sampling, filled clipping, carrier geometry, and ABI 1 buffers
`src.projections/cart0freak0-projection-slicing.h`	Generic viewport, native-cell, geographic, and planar-tile descriptors plus CK/Myria catalogs
`src.wasm/cartofreako-projections-web.cc`	Thin all-projection Emscripten/Embind boundary
`src.wasm/cartofreako-projections.mjs` / `.wasm`	Generated all-projection ES-module loader and companion binary from `make wasm-projections`
`src.wasm/cartofreako-web.mjs`	Stable high-level runtime, projection lifecycle, and GeoJSON flattener
`src.wasm/cartofreako-svg.mjs`	Shared command-buffer SVG renderer
`src.wasm/cartofreako-canvas.mjs`	Shared command-buffer Canvas/OffscreenCanvas renderer
`src.wasm/cartofreako-d3.mjs`	D3-compatible topology-safe stream adapter
`src.wasm/cartofreako-projections-worker.mjs`	Module-worker WASM host and transferable buffer protocol
`tests/test-projection-runtime.cc`	Native all-model buffers, holes, multipolygons, carriers, and slices
`src.wasm/cahill-keyes-web.cc`	Emscripten/Embind adapter that projects points and generates the browser SVG with the native C++20 Cahill-Keyes implementation
`src.wasm/cartofreako-cahill-keyes.mjs`	Generated ES-module loader for the Cahill-Keyes WebAssembly binary; produced locally by `make wasm-cahill-keyes` and not checked in
`src.wasm/cartofreako-cahill-keyes.wasm`	Generated Cahill-Keyes WebAssembly binary; produced locally by `make wasm-cahill-keyes` and not checked in
`src.wasm/cahill-keyes-smoke.mjs`	Node smoke test for projection identity, reference coordinates, variable frames, validation, land input, and generated SVG structure
`src.wasm/cahill-myriahedral.cc`	Emscripten/Embind Myriahedral adapter with exact terminal-face clipping and an ocean/land-only SVG contract
`src.wasm/cahill-myriahedral-smoke.mjs`	Node smoke test for the Myriahedral API, 16:9 frames, all 5,120 ocean faces, exact two-layer output, and seam-safe land
`src.wasm/cartofreako-cahill-myriahedral.mjs`	Generated ES-module loader for the Myriahedral WebAssembly binary; produced locally by `make wasm-cahill-myriahedral` and not checked in
`src.wasm/cartofreako-cahill-myriahedral.wasm`	Generated Myriahedral WebAssembly binary; produced locally by `make wasm-cahill-myriahedral` and not checked in
`src.wasm/README.md`	Browser builds, layer choices, output artifacts, runtime clipping, shared Natural Earth input, and provenance
Myriahedral web workflow	Emscripten workflow for an illustrative raster-backed 1920×1080 Myriahedral overlay
Myriahedral web example	Complete copyable C++, HTML, JavaScript, and build example for that Myriahedral workflow
Generation guide	End-to-end SVG generation, seam and folding techniques, data preparation, structural checks, and perceptual considerations
Generation methods	Central `generate-*` evaluation ledger, implemented conclusions, configured workflows, JSON schema, and Stage 7 decisions
Prerequisites	Native build, data acquisition, Inkscape review, and optional WebAssembly prerequisites
Astronomy implementation	Astronomy profile schema, source evaluation, astrometric formulas, instrumentation filter, output contract, verification, and accuracy boundary
Cloud-atmosphere implementation	Stage 4.1a feasibility, astronomy boundary, JAXA sources, process time, P-Tree QA, H3 preparation, products, terms, verification, and limits
P-Tree production download	Quick-start P-Tree registration, secure credentials, connection test, reproducible production refresh, expected files, and troubleshooting
Orbital Technosphere implementation	Stage 4.2 feasibility, naming, NASA/CelesTrak source roles, OMM/SGP4 formulas, products, verification, and accuracy boundary
Stage 12 implementation	Stage 12 resource expansion, Anthropocene defaults, external authorization, render hardware, generated snapshots, and Star-X paint-order integration
Visual gallery	Projection comparison, featured subjects, and entry points to all six 32-plate contact sheets
Technical documentation	Compact build, projection, pass-lifecycle, browser, release, and preservation index
`_data/generated_passes.yml`	Canonical 32-plate labels, stems, alternate text, categories, and stable section identifiers
`_includes/generated-snapshot.md`	Shared PNG-first contact sheet with explicit layered SVG and print PDF actions for all six projections
Resources enrichment plan	Stage 12 six-family taxonomy, source evaluation, non-sparse options, v3 schema, migration sequence, and release QA
`src.projections/cart0freak0-star-x.h`	Star-X group assembly, configurable centered scale, fixed-`60°S` cap geometry, frame validation, public API, and factory
`tests/test-star-x-projection-api.cc`	Star-X anchors, assembly and scale, global domain, cap invariants, variable-frame, validation, and API tests
Star-X context	Star-X octahedral context, face-slot mapping, group rotation, page enlargement, polar composition, and cuts
Star-X implementation	Star-X gap, scale, and polar formulas, API, safeguards, verification, and provenance
Star-X sources	Star-X arrangement, Cahill-Keyes geometry, historical, asset, and test sources
`src.generate/projection-generation-common.h`	Exact 44-unit frame configurations, projection dispatch, native-cell lookup, cut bisection, and shared seam-safe path projection
`src.generate/generation-instant.h`	Shared strict UTC parsing, Julian dates, process-start sampling, `SOURCE_DATE_EPOCH`, and source-age calculation
`src.generate/solar-geometry.h`	Shared astronomy/atmosphere Sun ephemeris, sidereal time, subsolar point, solar altitude, and twilight zones
`generation-profile.json`	Checked-in projection and generation-pass preference used by a bare `make`
`src.generate/generation-profile.h`	Strict generation-profile schema, aliases, canonical projection/pass matrix, and safe Make target expansion
`src.generate/resolve-generation-profile.cc`	Machine-readable target resolver and human-readable `generation-plan` entry point
`tests/test-generation-profile.cc`	Profile defaults, aliases, all-selection expansion, duplicate detection, and invalid-schema tests
`src.generate/projection-area-generation.h`	Face-local Dymaxion, Myriahedral, and Voronoi transforms plus exact planar-triangle clipping for filled paths
`src.generate/generate-geometry.cc`	Izzi SVG generator and structural test for native AuthaGraph, Cahill-Keyes/Star-X, Dymaxion, Myriahedral, and Voronoi faces plus four map quadrants
`geometry-ck-44-22.png`	PNG preview of the generated layered Cahill-Keyes face geometry in a 44×22 frame
`src.generate/generate-graticules.cc`	Izzi SVG generator and structural test for grouped, degree-labeled, discontinuity-split 10° latitude and longitude lines
`graticules-ck-44-22.png`	PNG preview of the generated 44×22 Cahill-Keyes graticule with 17 latitudes and 36 longitudes
`src.generate/natural-earth-generation.h`	Shared GDAL/Izzi renderer and structural checks for the complementary Natural Earth base and overlay layer sets
`src.generate/generate-earth.cc`	Thin generator entry point for the `ocean` and `land` base layers
`earth-ck-44-22.png`	PNG preview of the generated 44×22 Cahill-Keyes ocean-and-land base
`src.generate/generate-water.cc`	Thin generator entry point for every Natural Earth physical layer except `ocean` and `land`
`water-ck-44-22.png`	PNG preview of the complementary 44×22 Cahill-Keyes physical-feature overlay
`src.generate/bathymetry-roulette-style.h`	Validated twelve-depth epitrochoid/hypotrochoid catalogue, twelve field variations, curve construction, palette, and mosaic constants
`src.generate/generate-bathymetry-roulette.cc`	Six-projection Natural Earth clip and explicit filled, blue-ramp, Voronoi-grouped roulette-field generator with key and embedded SVG checks
`tests/test-bathymetry-roulette-style.cc`	Cycloid minimum, depth ordering, equal Voronoi distribution, closure period, curve uniqueness, all-fill, opacity, and identifier tests

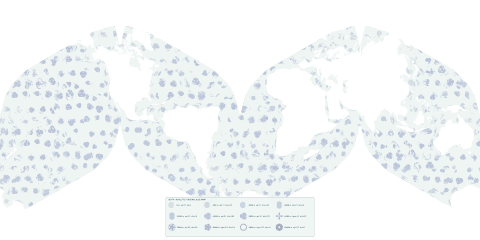

`bathymetry-roulette-ck-44-22.png`	PNG preview of the generated 44×22 Cahill-Keyes roulette bathymetry
`docs/bathymetry-roulette-implementation-notes.md`	Stage 4.5 feasibility, confirmed catalogue, clipping and layering model, products, verification, accepted moiré, and limits
`src.generate/bathymetry-hamonshu-style.h`	Twelve depth parameter pairs, twelve source-indexed Izzi wave motifs, blue ramp, field geometry, and Voronoi mapping
`src.generate/generate-bathymetry-hamonshu.cc`	Six-projection Natural Earth clip and explicit 30%-opacity Hamonshū wave-field generator
`tests/test-bathymetry-hamonshu-style.cc`	Source uniqueness, monotonic density/curvature, overlap, opacity, Voronoi balance, and identifier tests
`docs/bathymetry-hamonshu-implementation-notes.md`	Stage 4.6 source, form mapping, field/layer contract, commands, verification, and limits
`docs/anthropocene-source-expansion-stage-13.md`	Stage 13 full-GHCN, OpenAQ, CAMS/MAIAC, GFAS, and PurpleAir source evaluation and promotion gates
`src.generate/astro-data.h`	Validated dual-observer profiles and catalog ingestion, proper motion, Solar System approximation, physical planet radii/apparent sizes, sidereal time, event window, and band filtering
`src.generate/astro-observer.h`	Terrestrial altitude and orbiting-Hubble SGP4 state, Earth-limb/Sun separation, and platform visibility rules
`src.generate/astro-generation.h`	Projection-aware astronomy layers, distinct ground/Hubble metadata and guides, 2× planet glyphs, dotted true-size outlines, labels, and embedded SVG checks
`src.generate/generate-astro.cc`	Thin all-sky and profile-selected observer astronomy generator entry point
`tests/test-astro-generation.cc`	Dual-profile authority, time, ground horizon, Hubble orbit/avoidance, planet scale, catalogs, instrumentation, and JPL Horizons tolerance tests
`assets.static/astronomy/astro-profile.json`	Reproducible San Francisco `ground-multiband` observer and generic multi-band instrument contract
`assets.static/astronomy/astro-hubble-profile.json`	Reproducible Hubble NORAD/OMM observer, HST composite instrument, and pointing-avoidance contract
`assets.static/astronomy/curated-sky.json`	Provenanced persistent multi-band objects and timestamped GCN/NSSDC transient snapshot
`scripts/fetch-astro-data.sh`	Bounded Gaia DR3, NASA Exoplanet Archive, and JPL SBDB snapshot refresh
`src.generate/cloud-atmosphere-data.h`	Strict source profile and prepared H3 observation loading, QA policy, source timing, and missing-data validation
`src.generate/cloud-atmosphere-generation.h`	Projection-aware solar/twilight and physical-atmosphere layers, provenance, visible coverage limits, and embedded checks
`src.generate/generate-cloud-atmosphere.cc`	Thin six-projection Cloud-atmosphere generator entry point
`src.generate/prepare-cloud-atmosphere.cc`	GDAL NetCDF/COG sampling, scale/QA handling, H3 aggregation, and prepared GeoJSON writer
`tests/test-cloud-atmosphere-generation.cc`	Profile, fixture, time, shared-Sun, semantics, H3, and six-projection geometry tests
`tests/test-resolve-jaxa-stac.py`	Offline latest-not-after and nonoverlapping JAXA COG tile-level selection test
`assets.static/cloud-atmosphere/`	Authoritative source/QA profile, terms and workflow note, and visibly synthetic test fixture
`scripts/fetch-cloud-atmosphere-data.sh`	Credential-safe P-Tree and public JAXA Earth latest-not-after refresh
`scripts/resolve-jaxa-stac.py`	Static-STAC traversal, COG-level selection, download, and source manifest helper
`scripts/prepare-cloud-atmosphere-data.sh`	Atomic raw-to-prepared H3 snapshot workflow
`scripts/verify-cloud-atmosphere-data.sh`	Prepared snapshot checksum and production-schema gate
`src.generate/resources-data.h`	Strict Stage 12 v3 source catalogue, six-family country/spatial profile, coverage, and normalized-value loader
`src.generate/resources-generation.h`	Metric-specific country choropleths and spatial reef fields, missing-data layers, catalogue metadata, legends, and embedded SVG checks
`src.generate/generate-resources.cc`	Six-family, fourteen-metric resource-generator entry point
`tests/test-resources-generation.cc`	Stage 12 source, coverage, spatial schema, derivation, catalogue, alias, and naming tests
Resources metric catalog	Human-readable classification of all 59 standard and exploration-only resource metrics, plus the optional-pass boundary
`assets.static/resources/resources-profile.json`	Checked v3 family/source/metric/coverage/spatial catalogue
`assets.static/resources/resources-values.json`	Checked normalized country observations for released/default and available metrics
`assets.static/resources/countries-110m.geojson`	Natural Earth Admin-0 country geometry with normalized resource join keys
`assets.static/resources/coral-reefs-025deg.geojson`	Checked 0.25-degree WRI Reefs at Risk threat-cell geometry
`scripts/fetch-resources-data.sh`	Explicit primary-source refresh staging workflow; never an ordinary build dependency
`scripts/prepare-resources-data.py`	Deterministic source parsing, country normalization, human derivation, reef-cell normalization, coverage, schema, and checksum preparation
`scripts/authorize-external.sh`	Secret-safe read-only authorization checks for optional P-Tree, NASA FIRMS, and licensed topology passes
`src.generate/orbiting-data.h`	Orbital Technosphere profile and OMM validation, category membership, SGP4 adapter, frame transforms, illumination, and visibility state
`src.generate/orbiting-generation.h`	Global and observer semantic SVG layers, subdued Natural Earth base, representative tracks, markers, metadata, and embedded checks
`src.generate/generate-orbiting.cc`	Thin Orbital Technosphere generator entry point
`src.generate/third_party/sgp4/`	Unmodified Vallado/CelesTrak SGP4 C++ reference implementation and provenance
`tests/test-orbiting-generation.cc`	Profile, OMM, large catalog ID, published SGP4 vector, NASA SSCWeb tolerance, and finite-state tests
`assets.static/orbital-technosphere/orbital-technosphere-profile.json`	Pinned propagation time, make-invocation location, source catalog roles, freshness, visibility, and display budgets
`scripts/fetch-orbiting-data.sh`	Atomic CelesTrak OMM and NASA SSCWeb snapshot refresh with schema checks and hashes
`src.generate/network-swarm-data.h`	Strict cumulative swarm GeoJSON and profile validation, 64-bit H3 handling, fixed log scales, and snapshot provenance
`src.generate/network-swarm-clustering.h`	H3 parent grouping, native-projection seam partitioning, and canonicalized Izzi radial honeycomb placement
`src.generate/network-swarm-generation.h`	WCAG light-gray terrestrial base, enlarged independent downloader glyph layers, 2× title, provenance, and embedded SVG checks
`src.generate/generate-network-swarm.cc`	Thin six-projection cumulative network-swarm generator entry point
`tests/test-network-swarm-generation.cc`	Snapshot totals, overlap semantics, H3 statistics, honeycomb uniqueness, and six-projection layout tests
`assets.static/network-swarm/network-swarm-profile.json`	H3 resolutions, physical mark dimensions, label/tether settings, fixed p99 scales, hashes, commit, and license
`scripts/prepare-network-swarm-data.sh`	Bounded, safe, atomic staging of local ZIP or plain GeoJSON network-swarm input
Network-swarm implementation	Stage 4.4 feasibility, source audit, clustering, visual encodings, products, verification, and limits
`src.generate/network-infrastructure-data.h`	Strict profile, cloud-manifest, submarine-cable, landing, and Internet-exchange parsing with exact source audits
`src.generate/network-infrastructure-clustering.h`	Shared projection-cell-aware Izzi radial-hexagon collision layout for infrastructure point families
`src.generate/network-infrastructure-generation.h`	Dark terrestrial base, seam-safe physical and logical topology, semantic point layers, attribution, and embedded SVG checks
`src.generate/generate-network-infrastructure.cc`	Thin six-projection network-infrastructure generator entry point for normal sites and opted-in topology profiles
`tests/test-network-infrastructure-generation.cc`	Profile license gate, seam geometry, honeycomb uniqueness, mixed-model, XML, and six-projection tests
`assets.static/network-infrastructure/`	Commit/digest/count-pinned sites and topology profiles plus external-source and licensing contract
`scripts/check-network-infrastructure-sources.sh`	Offline commit, digest, and consumed-path validation for external infrastructure checkouts
Network-infrastructure implementation	Stage 9 feasibility, source audit, license boundary, semantics, profiles, rendering, products, verification, and limits
`assets.static/fiber-synthesized/`	Checked 2022/20260805 cleaned union (Network Fiber input), source-separated audit observations, manifest, and hashes
`scripts/synthesize-submarine-cable-snapshots.py`	Deterministic validation, exact matching, source-separated audit, and cleaned-union preparation
`src.generate/fiber-synthesized-data.h`	Strict manifest and cleaned-union GeoJSON loader
`src.generate/fiber-synthesized-generation.h`	Network Fiber six-projection alpha60-style rendering, temporal semantics, provenance, and embedded checks
`tests/test-fiber-synthesized-generation.cc`	Counts, default snapshot, classification, hashes, and six-projection geometry tests
Network Fiber implementation	Union-versus-difference decision, source validation, algorithm, default layer, licensing, commands, and verification
`assets.static/network-groundstations/`	Vendored alpha60 Starlink gateway/POP snapshot, profile, and hashes
`src.generate/network-groundstations-data.h`	Strict profile and gateway GeoJSON loader
`src.generate/network-groundstations-generation.h`	Network Groundstations alpha60 Starlink-style rendering, provenance, and embedded checks
Network Groundstations implementation	Vendored source, red-triangle gateway style, provenance pins, build targets, and verification
`src.generate/generate-4-slice.cc`	Four full-height, quarter-width Cahill-Keyes quadrant-pair enlargements
`src.generate/generate-8-slice.cc`	Eight naturally bounded, face-clipped Cahill-Keyes octant enlargements
`src.generate/generate-myriahedral-slices.cc`	Two complementary, exact-terminal-face Myriahedral water slices
`scripts/fetch-natural-earth-10m.sh`	Pinned, checksum-verifying acquisition of the required Natural Earth shapefiles
Natural Earth source data	Natural Earth source, checksum, extracted-dataset, and licensing note
`src.projections/cart0freak0-myriahedral.h`	Myriahedral mesh, unfolding, forward transform, frame validation, API, and source-raster preset
`src.projections/cart0freak0-myriahedral-tree.inc`	Compact fixed parent tree for the 5120-face net
`src.projections/cart0freak0-myriahedral-perspectives.h`	Five exploratory tree configurations, raw bounds, registrations, and lazy layouts shared by native and WASM clients
`assets.static/myriahedral/perspective-configurations.json`	Machine-readable Myriahedral preprocessing and perspective metadata
`src.projections/cart0freak0-myriahedral-slicing.h`	Five-hinge semantic partition, exact face masks, SVG wrappers, and validation
`tests/test-myriahedral-projection-api.cc`	Myriahedral topology, reference-coordinate, variable-frame, domain, and API tests
`tests/test-myriahedral-slicing.cc`	Complementary face counts, hinge boundaries, registered viewports, and carrier validation
`tests/test-projection-generation-common.cc`	Seam-safe path regressions, Dymaxion generator dispatch, and exploratory Myriahedral metadata/layout checks
`src.projections/cart0freak0-voronoi.h`	Icosahedral Voronoi geometry, gnomonic face projection, affine unfolding, frame validation, API, and source-canvas preset
`tests/test-voronoi-projection-api.cc`	Voronoi topology, independent D3 reference coordinates, variable-frame, global-domain, seam, and API tests
`src.projections/a60-carto-projection.h`	Common projection interface and state
`src.projections/a60-carto-frame.h`	Shared frame and `frame_area` abstraction
`src.projections/a60-svg-carto-geo.h`	Geographic integration points exercised by API tests
